| Brand Name : | YOKOGAWA |
| Model Number : | EJA510E |
| Price : | $305.00/pieces |
| Payment Terms : | T/T |
| Supply Ability : | 100 pc 1 week |
| Delivery Time : | 7-14 days |
| MOQ : | 1 |

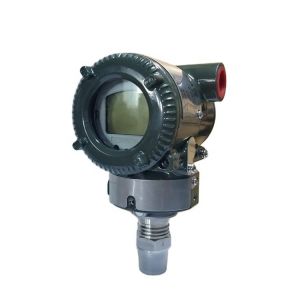

Customizable EJA510E/EJA530E 0-50Mpa Yokogawa Pressure Transmitter / Differential Pressure Transmitter in Stainless Steel
The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. with the exception of the Fieldbus, PROFIBUS and 2 for safety requirement.
EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SlL2 for safety requirement.
item | value |
Place of Origin | Japan |
Brand Name | Yokogawa |
Model Number | EJA510E-DAS7N-012DN/D4 |
Dimensions | 40*30*30cm |
Weight | 5kg |
Model | EJA510E-DAS7N-012DN/D4 |
Maximum Over Pressure | 8,700 psia |
Accuracy | ± 0.055% Accuracy (0.04% Accuracy optional) |
Shipping weight | 3kg |
Product Name | In-Line Mount Absolute Pressure Transmitter |
Response Time | 90 ms |
Stability | ± 0.2% Stability per 10 years |
Certificate | Exida and TUV SIL 2/3 Certified |
Setting | Local Parameter Setting (LPS) |
|
|
